Workshop 3e

Arch 200c 2013 Fall

Course Arch 200c
Date 2013/10/18
Learning Objectives An informal workshop on working with contours in 2d and 3d, this class was rescheduled to a Friday.
  • Workshop 3e
  • In-Class Exercise
  • On the Radar
    • Departure Three review tomorrow!
    • Problem Set Three this Thursday
Uses Tool(s)

This session will be led by Kyle Steinfeld.

Workshop 3e

An informal workshop on working with contours in 2d and 3d.

Follow the steps in this rhino file for working with contours in 2d.

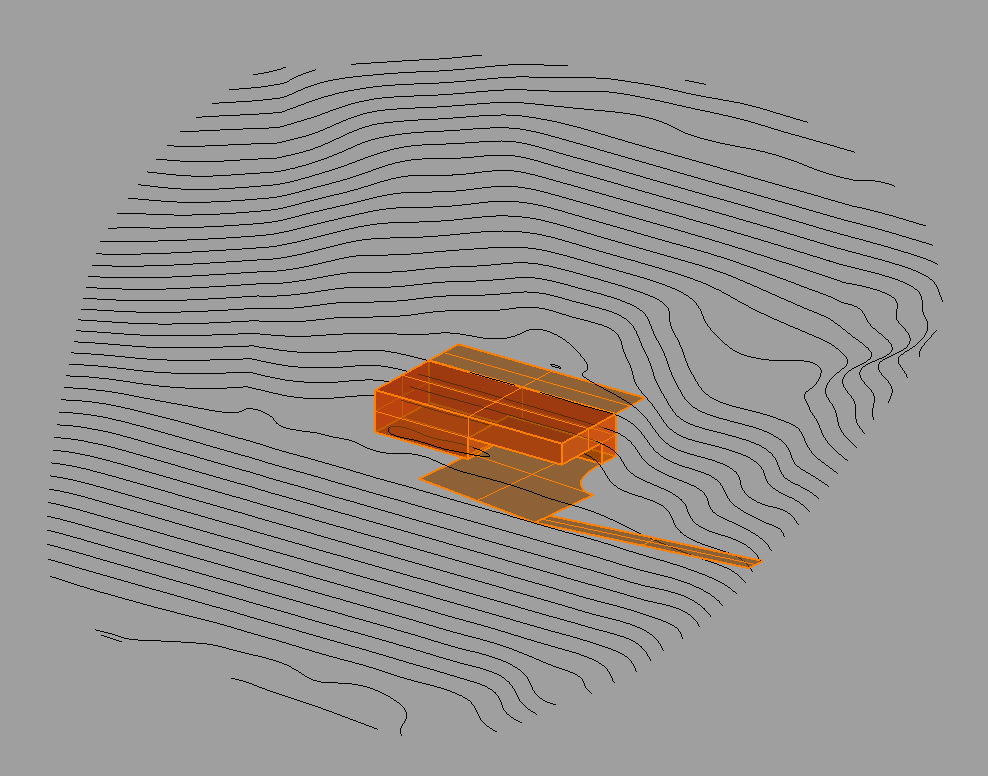

Contour Workshop Screenshot.jpg

Check out the three rhino files listed below for step-by-step walk-throughs of modifying terrain in 3d.

Above Landscape.3dm
In Landscape.3dm
On Landscape.3dm

Departure Three Graphic Triage

Your deadline to turn in work for Departure Three is tonight at midnight! We'll spend half the class today working with you to determine how to best spend the next hours in order to ensure the best possible presentation tomorrow.


Our third in-class Problem Set is this Thursday, just after the Departure Three review. This should take an hour or less, and will ask you to perform a small exercise based on what we've covered in our workshops thus far. If you have any questions regarding the content or format of this drawing exercise, now is the time to ask!
