Two-Point Perspective Projection - Villa Savoye
Screenshot
	In this exercise, students ability to produce accurate perspectival projections based on plan and elevational information will be assessed.
Assessment objectives	Ability to properly project 2-point perspectives Ability to properly utilize line weights in perspective projection Proper usage of projection lines Ability to properly read a plan and elevation
Exercise Type	Problem Set
Evaluation Criteria	High Pass Drawing is correctly depicted in 2-pt perspective, and utilizes projection lines from the station point and the picture plane. Line weights are clear and varied appropriately, and the drawing clearly visualizes space and mass. The drawing itself is clean from smudges or other blemishes that detract from the understanding of the drawing. Pass Drawing is depicted in 2-pt perspective with some minor issues, and utilizes projection lines from the station point and the picture plane. Line weights are clear and varied but with minor issues. Drawing is mostly clean, with some blemishes. Low Pass Drawing is depicted in a perspective with major issues that cause the perspective to be perceived as incorrect, and/or lacks projection lines from the station point and the picture plane. Line weights are not apparent and space and mass are not clearly differentiated. Drawing is not clean, with scratches or other marks that remove from the composition. Fail No drawing.
Uses Tool(s)	Tool:Drafting Board
Uses Workflow(s)	Workflow:515282

Instructions

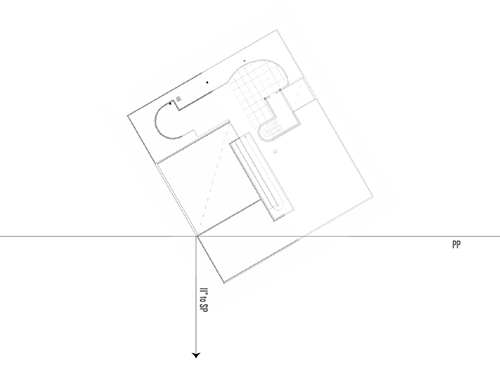

Students are given a plan and elevation of Villa Savoye that provides a picture plane location, a horizon line, a ground plane line, and a location of a station point. From the given materials, students are to create a hand-rendered drawing of a 2-pt perspective

Submission

Students will turn in a 2-pt perspective hand drawing based off of the given plan and elevation. This can be on any media, but should be a clean drawing free of smudges and other blemishes. The student's name must be present on the drawing to receive credit.

Resources

Villa Savoye 2-pt Perspective
