Final Board Mock-Up

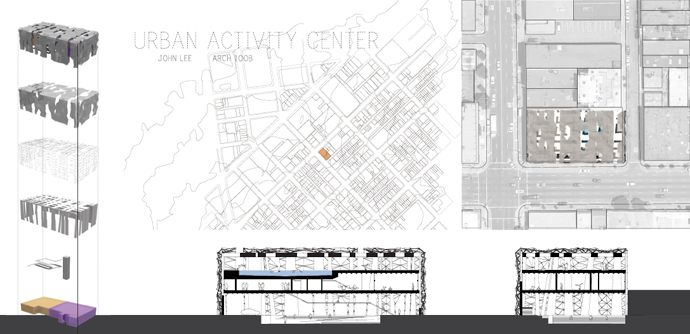

Screenshot Arch100b creedon sp10 lee-john 1.jpg
Create a final board layout using Illustrator or InDesign to create a strong conceptual presentation of your project.
Assessment objectives

Assessment objectives include:

  • Understanding how design concepts can facilitate drawing organization and layout
  • Uses Illustrator or InDesign effectively to manage multiple images and files
Exercise Type Problem Set
Evaluation Criteria

This exercise will not be submitted digitally but will be assessed by your studio professor during class on Monday.

Uses Tool(s) Tool:Illustrator CS5 , Tool:InDesign CS5
Uses Workflow(s) Workflow:573980 , Workflow:455625

Create a final presentation layout using either Illustrator or InDesign to manage all of your images and files. This work will then be printed out at 1/4 scale and reviewed in studio on Monday. (4' x 8' becomes 1' x 2')

All drawings should be present at least in schematic form rather than placeholder boxes. Consider using past drawings, scanned sketches or quick rhino cuts to reference work that is in early stages of development.

There will be no digital submission for this exercise but instead the work will be reviewed by your studio instructor. See bSpace posting for most information.
